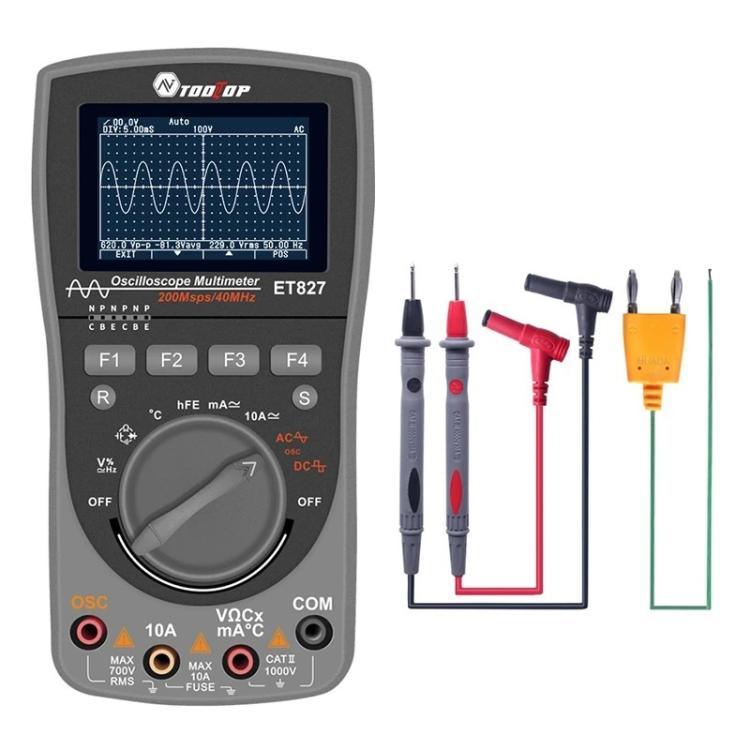

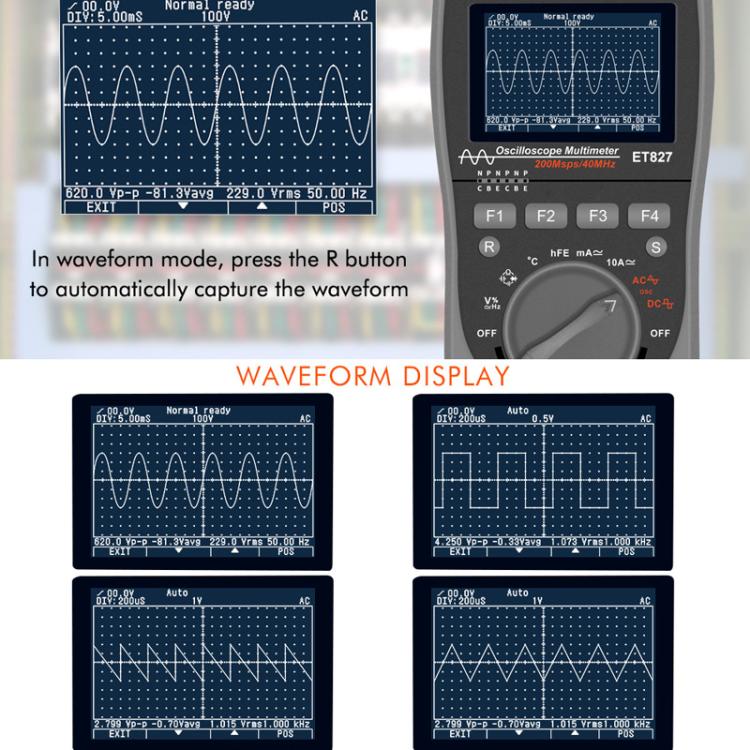

Oscilloscope Multimeter 200Msps Sampling Rate 40MHz Oscilloscope + Multimeter 2 In 1, ET827

1. Display: 240 x 160 pixel LCD
2. Backlight: black screen with white backlight
3. Impedance: 10 megohm
4. Battery: AA battery x 3 (not included)
5. Auto power off: no operation within 15 minutes

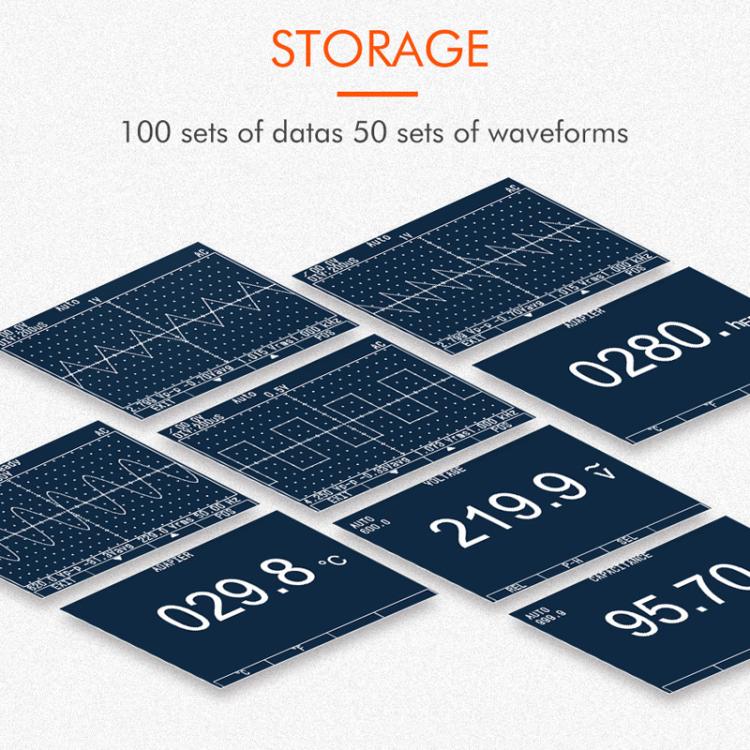

6. Storage: 100 sets of data, 50 waveforms
7. Operating environment: 0 - 40 degrees Celsius, less than 75%RH
8. Storage environment: -10 - 60 degrees Celsius, less than 90%RH

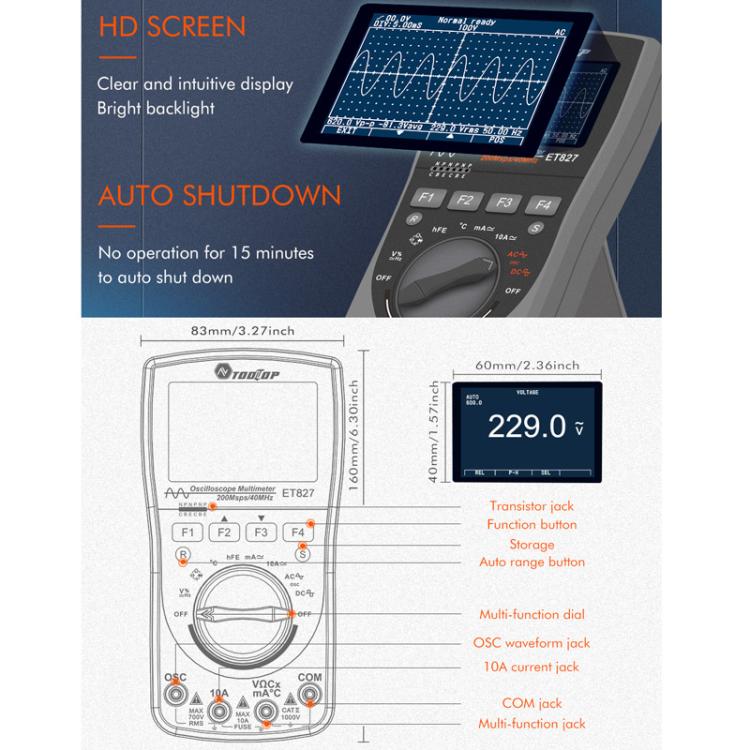

9. Display area: about 6 x 4cm
10. Dimensions: about 8.3 x 16 x 3.2cm
11. Weight: about 210g

Oscilloscope:
1. Analog bandwidth: 40MHz
2. Nonlinearity: +/-1 bit
3. Vertical resolution: 8 bits
4. Coupling mode: AC/DC

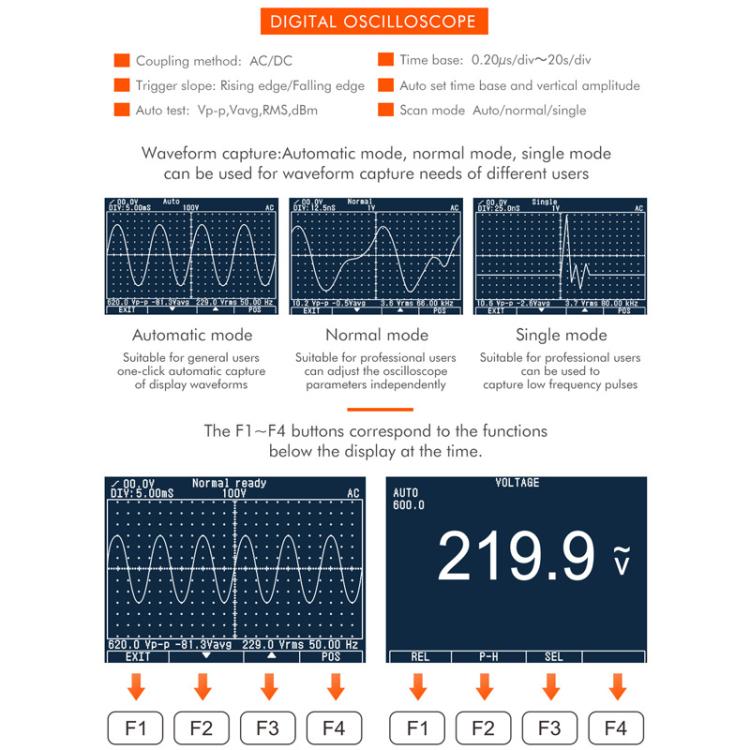

5. Sweep mode: auto / normal / single
6. Record length: 24.0 div
7. Vertical sensitivity range: 500mV/div - 200V/div
8. Maximum real-time sampling rate: 200Msps
9. Vertical amplitude accuracy: +/-(5%+ 0.2div)
10. Scale: vertical +/-6.0, horizontal 24.0
11. Automatic zero reference: DC measurement
12. Time base range: 12.5ns/div - 10s/div
13. Cursor measurement function: dV, dt
14. Time base accuracy: +/-(0.01%+0.1div)
15. Trigger slope selection: rising edge/falling edge
16. Automatic measurement function: peak-to-peak value, average value, effective value
17. Automatic measurement accuracy: +/-(5%+0.2div)
18. The highest measurable voltage of the waveform: 700V

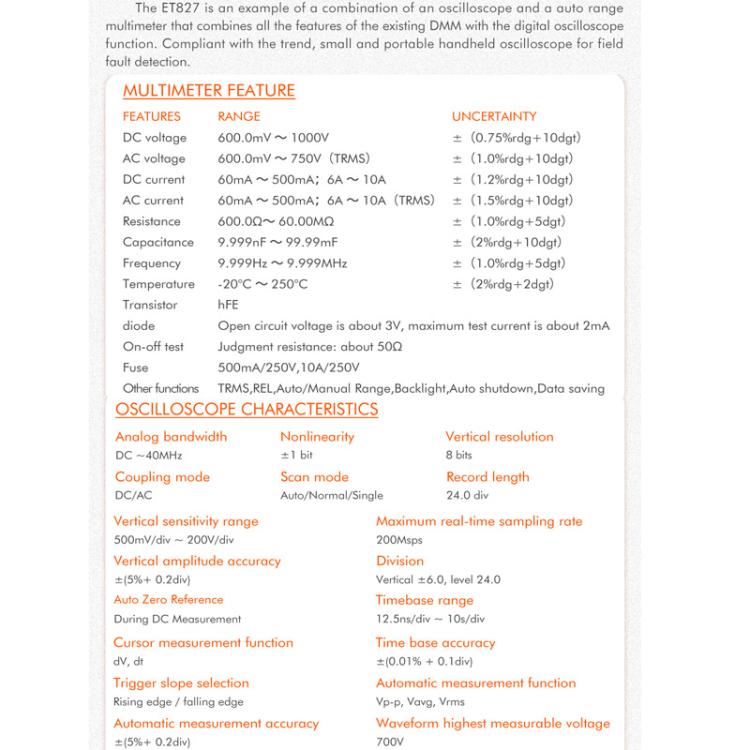

Multimeter:
1. Range:
- DC voltage: 600mV - 1000V +/-(0.75%rdg+10dgt)
- AC voltage: 600mV - 750V(TRMS) +/-(1.0%rdg+10dgt)
- DC current: 60mA - 500mA, 6A - 10A +/-(1.2%rdg+10dgt)
- AC current: 60mA - 500mA, 6A - 10A(TRMS) +/-(1.5%rdg+10dgt)
- Resistance: 600.0 ohms - 60.00 megohms +/-(1.0% reading + 5 digits)
- Capacitance: 9.999nF - 99.99mF +/-(2% reading + 10 digits)
- Frequency: 9.999Hz - 9.999MHz +/-(1.0% reading + 5 digits)
- Temperature: -20 degrees Celsius - 250 degrees Celsius +/-(2% reading + 10 digits)
2. Transistor: hFE
3. Diode: open circuit voltage is 3V, maximum test current is 2mA
4. Switch test: judge resistance is about 50 ohms

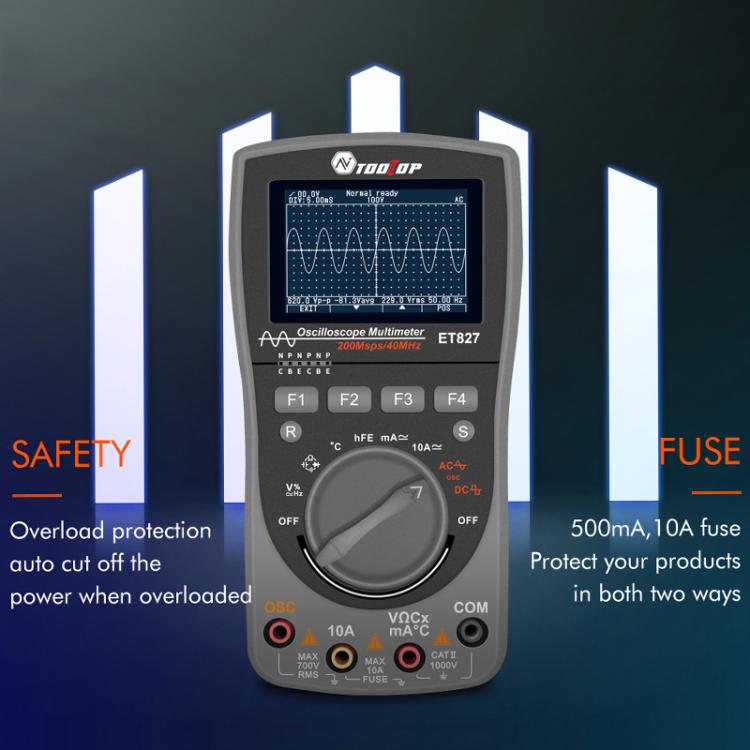

5. Fuse: 500mA/250V 10A/250V

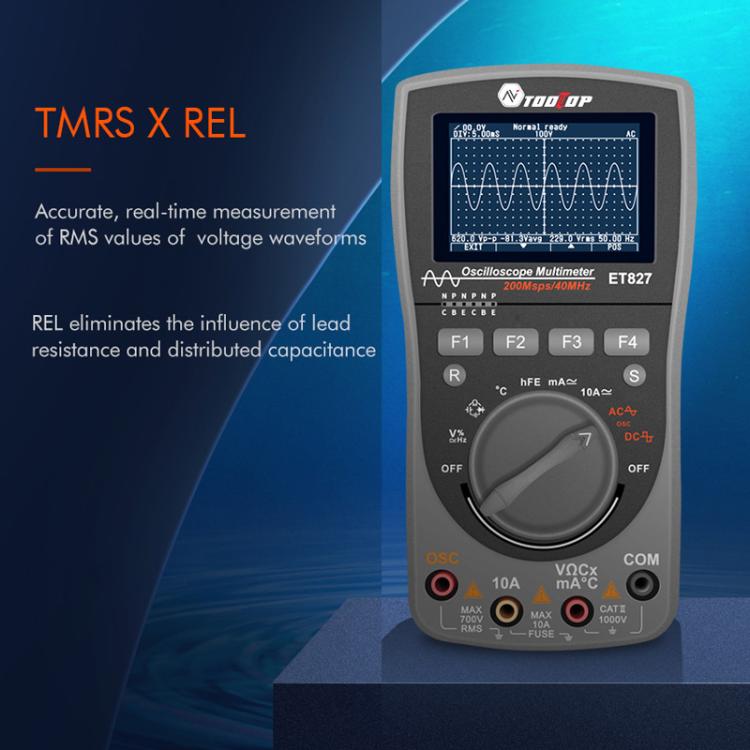

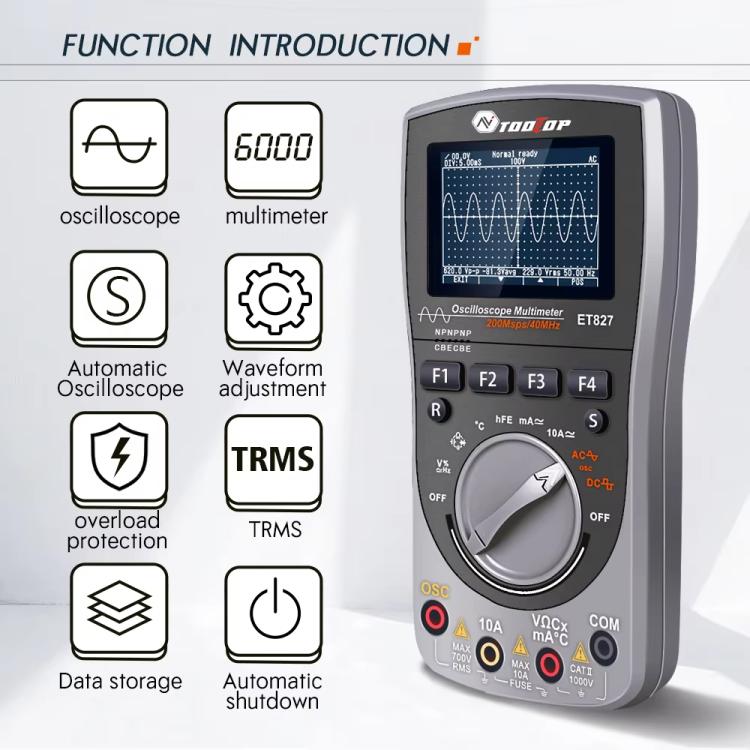

6. Other functions: true RMS measurement, relative measurement, automatic/manual range, backlight, automatic shutdown, data storage

Features:

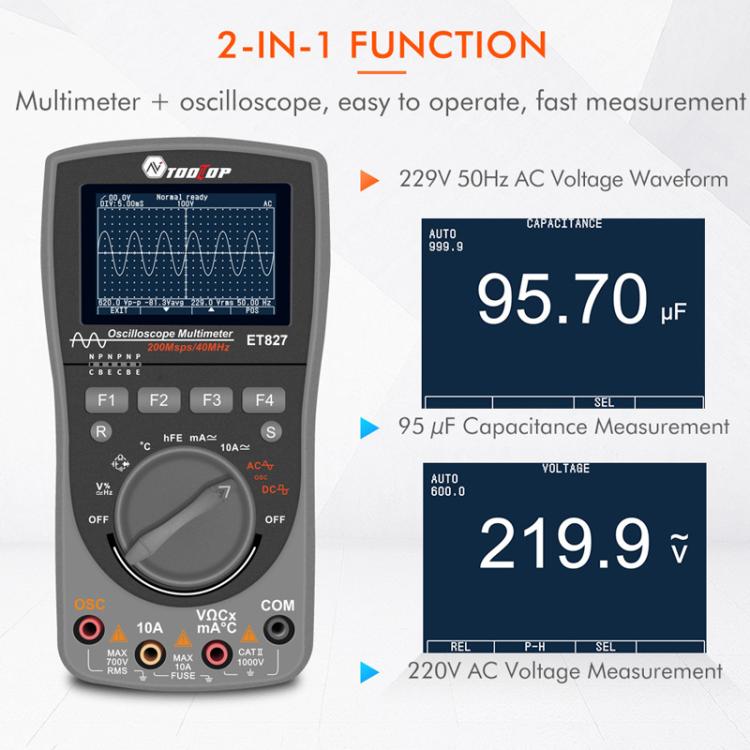

1. The handheld oscilloscope is used for waveform measurement, with two general test instrument functions: oscilloscope + multimeter, small size, beautiful appearance and clear interface
2. It can quickly and accurately detect faults in the circuit under test, suitable for outdoor research, production, debugging and maintenance, and can be used as an electronic device

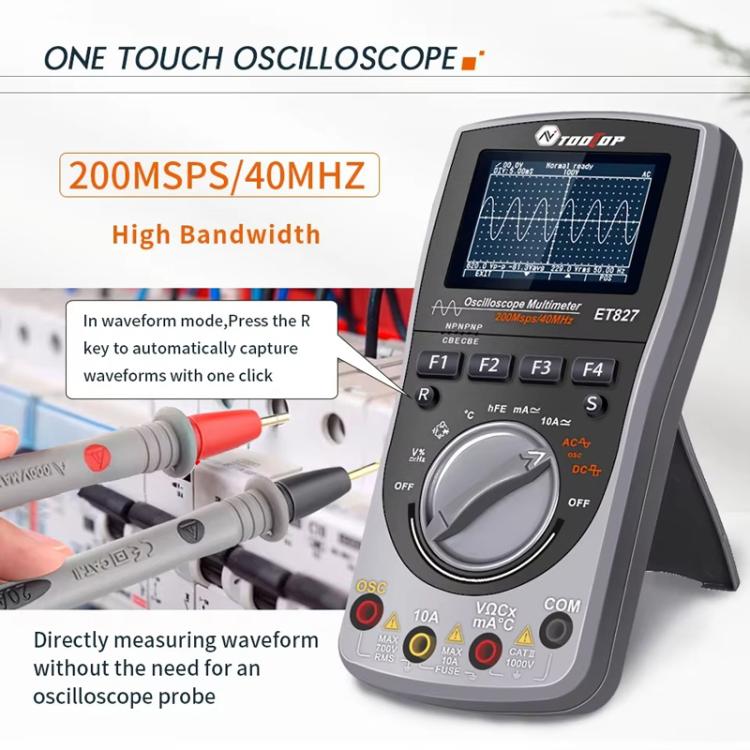

3. Oscilloscope: 40MHz bandwidth and 200MHz real-time sampling rate, three trigger modes: automatic, normal and single, waveform saving, automatic measurement
4. Multimeter: equipped with dedicated chip, 6000 count display high precision, DC/AC current, voltage, resistance, frequency, diode, transistor, temperature test
